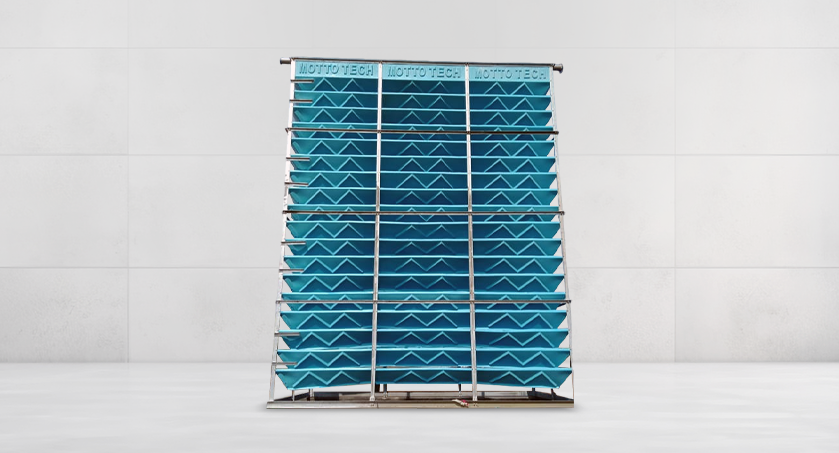

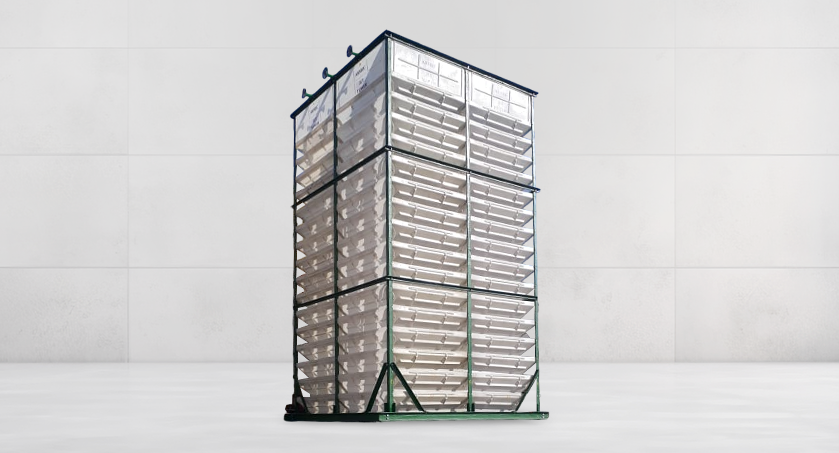

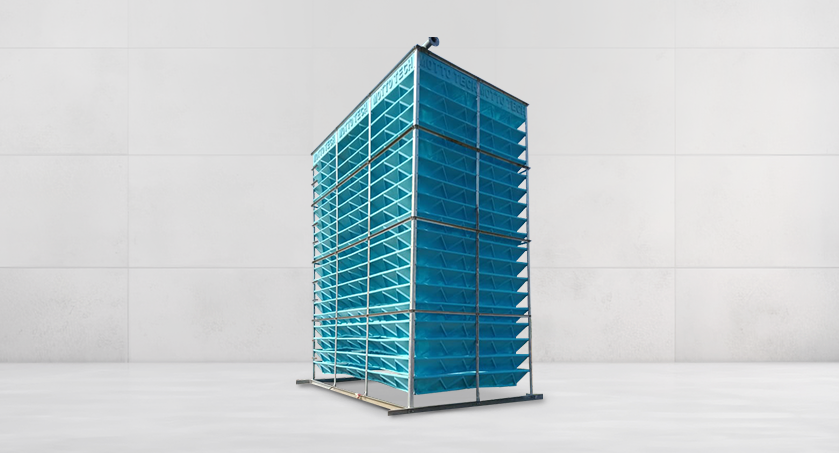

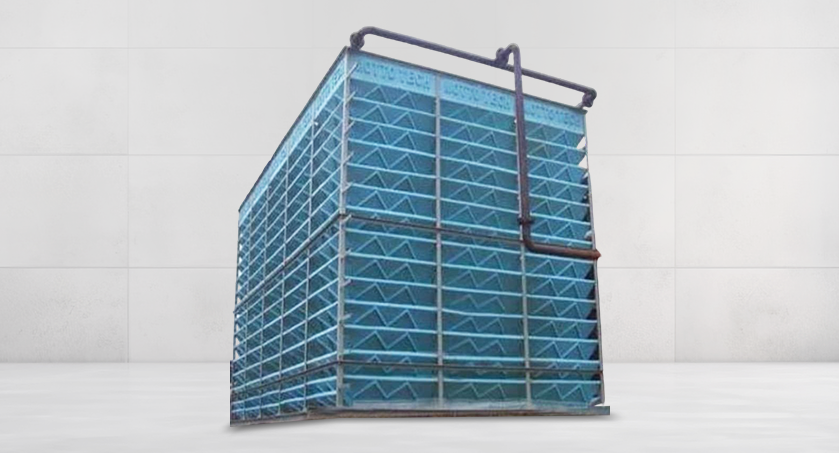

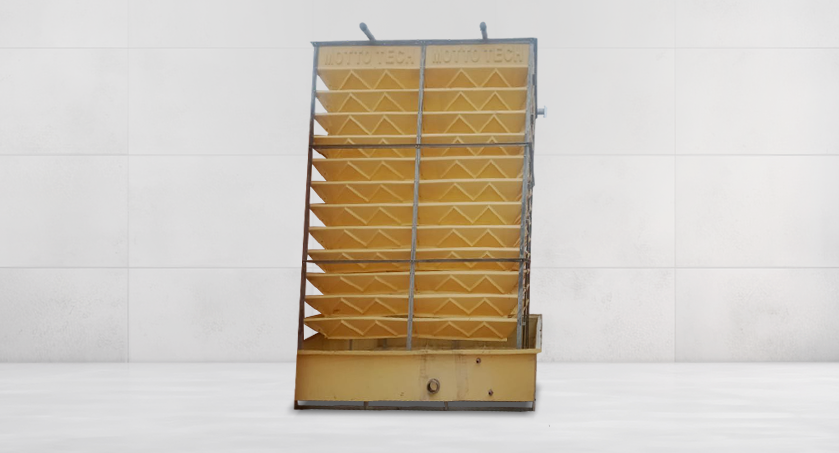

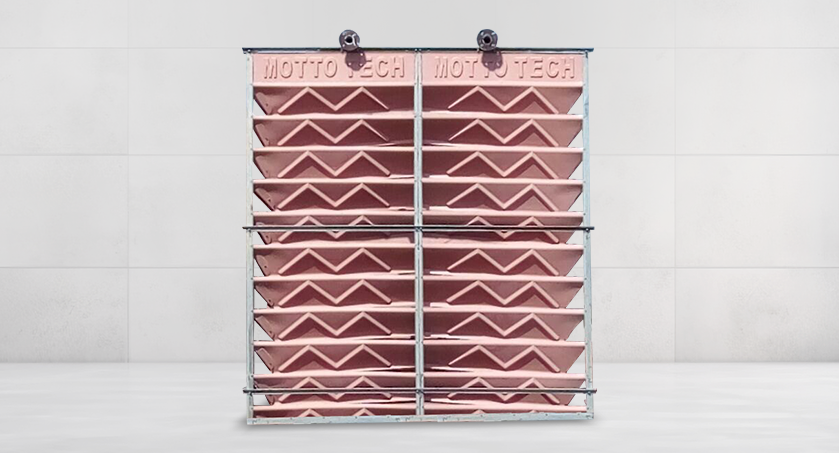

Fanless Fillless Cooling Tower

Fanless Fillless Cooling Tower

Type of Cooling Tower	Fanless Fillless Cooling Tower
Usage / Application	Industrial
Tower Material	FRP (Fiberglass Reinforced Polyester)
Shape	Rectangular / Square (as per design)
Color	Blue / Grey
Operating Principle	Atomized water mist cooling via aerodynamic air circulation
Water Inlet Pressure	1–1.5 kg/cm²
Cooling Mechanism	Direct contact evaporation (no fan, no fill)
Air Circulation	Naturally induced via aerodynamic FRP louvers
Maintenance Requirement	Minimal (no moving parts)
Power Requirement	Nil (100% saving)
Nozzle Type	Non-clog atomizing type
Typical Application Range	Small to medium industrial processes, chemical plants, etc.

Description:

Fanless Fillless Cooling Towers — as the name suggests — operate without a fan or fill media, ensuring 100% power savings and significantly reduced maintenance downtime. The system relies on natural air movement and advanced nozzle atomization technology to deliver efficient cooling without moving parts.

Working Principle:

• Hot Water Circulation
  Hot water from the heat source is circulated to the inlet header of the cooling tower.
• Distribution Network
  The header pipes have multiple branches and sub-branches that uniformly cover the internal area of the cooling tower.
• Atomization through Non-Clog Nozzles
  At the outlets of sub-branch pipings, non-clog atomizing nozzles convert the hot water into a fine mist at a pressure of 1–1.5 kg/cm².
• Natural Air Induction
  Aerodynamic FRP louvers on all four sides automatically draw in ample fresh air without any fan assistance.
• Controlled Water Direction
  These louvers guide mist and water droplets toward the collection sump, ensuring no water spillage.
• Evaporative Cooling
  The fine mist comes into contact with ambient air, causing partial evaporation. The latent heat of vaporization removes heat from the water, effectively cooling it.

Key Features

• Zero Power Consumption
  Devoid of fan or fill media — designed for 100% power savings with no fan requirement, ensuring energy-efficient operation.
• No Fill Media
  Operates without fill material, eliminating issues of clogging, fouling, or bacterial growth, resulting in minimal maintenance.
• Simple & Durable Design
  Features a robust and straightforward structure with very few moving parts, reducing downtime and enhancing operational life.
• Low Maintenance & High Reliability
  Engineered for continuous industrial use with minimal servicing needs, making it ideal for industries requiring uninterrupted cooling.
• Energy-Efficient Cooling Solution
  A sustainable choice for industries focused on energy conservation, offering long-term cost savings and environmental benefits.
